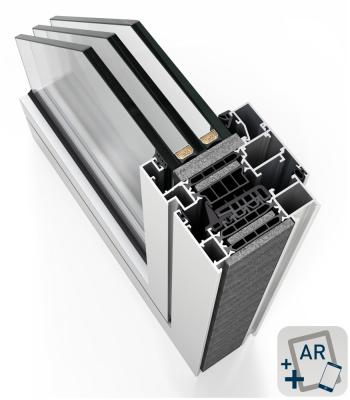

Cor-80 Industrial System with Thermal Break
A new concept of a Euro-Groove hinged system capable of reaching the maximum levels of weather tightness, energy saving and acoustic protection with reduced assembly and fabrication time.
With 80 mm of frame depth, it responds to the most severe climatic demands, and provides an unbeatable degree of energy efficiency thanks to its minimal window transmission value (UH) that can reach 0.8 W/m²K. These minimum values are achieved thanks to the perfect design of the thermal break zone with 45 mm tubular polyamide strips as well as the incorporation of cross-linked polyolefin both in the glazing space as well as the interior of the frame and sash.
Its great glazing capacity of up to 65 mm allows for the use of energy efficient glazing and compositions of large thicknesses as well as double chambers that gives excellent thermal and acoustic performance (up to 46 dB of noise protection) that translates in to maximum energy saving and total interior comfort.
The performance achieved in the AEV test, has shown this window to have the best water tightness performance, air permeability and wind resistance in order to guarantee the greatest protection against the most adverse atmospheric agents.
The simplicity in its assembly and less labour time, allows for a more industrialized fabrication resulting in a final saving of time and cost.
With 80 mm of frame depth, it responds to the most severe climatic demands, and provides an unbeatable degree of energy efficiency thanks to its minimal window transmission value (UH) that can reach 0.8 W/m²K. These minimum values are achieved thanks to the perfect design of the thermal break zone with 45 mm tubular polyamide strips as well as the incorporation of cross-linked polyolefin both in the glazing space as well as the interior of the frame and sash.
Its great glazing capacity of up to 65 mm allows for the use of energy efficient glazing and compositions of large thicknesses as well as double chambers that gives excellent thermal and acoustic performance (up to 46 dB of noise protection) that translates in to maximum energy saving and total interior comfort.
The performance achieved in the AEV test, has shown this window to have the best water tightness performance, air permeability and wind resistance in order to guarantee the greatest protection against the most adverse atmospheric agents.
The simplicity in its assembly and less labour time, allows for a more industrialized fabrication resulting in a final saving of time and cost.
Technical Data
Accoustic insulation
Maximum glazing: 65 mm.
Maximum accoustic insulation Rw=46 dB
Maximum accoustic insulation Rw=46 dB
Transmittance
Uw from 0,8 (W/m²K)
Please consult typology, dimensions
and glass
Opening possibilities
Open In:
Practicable, turn-tilt, parallel tilt, hinged.
Open Out:
Practicable, projecting-sliding.

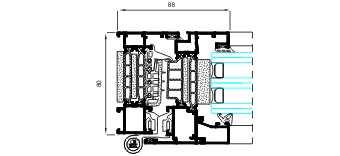

Sections / Profile thickness
SECTIONS
· Frame – 80 mm.
· Sash – 88 mm.
PROFILE THICKNESS
Window 1,5 mm.
Door 1,7 mm.
Polyamide strip length 45 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Width(L)= 1.600 mm.
Height(H)= 2.600 mm.
*Single sash window, turn-tilt
Maximum weight/sash 120 Kg.
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 4
Water tightness (EN 12208:2000):
CLASS E1950
Wind resistance (EN 12210:2000):
CLASS C5
Reference test 1,23x1,48 m., 2 sashes.
Finishes
Possibility of dual colour
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
