Millenium FR Door System with thermal break

This new fire resistant door system that has a fire resistance classification of EI260, resolves the security requirements in case of fire, allowing for the compartimentalization in fire sectors in the building and the evacuation of the users.

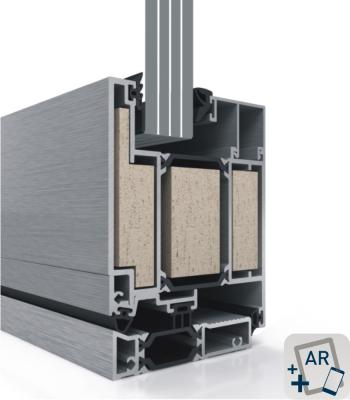

Comprising of 80 mm section straight line coplanar profiles, 2.2 mm thick and a 35 mm thermal breaking zone, it offers a 60 minute fire resistance time thanks to the utilisation of retardant insulation materials that do not combust in the profile chambers as well as intumescentant gaskets that dilate and bio-soluble paper in the glass area.

With a frame transmission value from 1.4 W/m²K, it reaches unbeatable thermal features and with its large glazing capacity having a free space of 56 mm, it guarantees a maximum accoustic insulation.

Possibility of joining with fixed lights, incorporation of opening gearing with anti-panic function, automatic door closers and handles/hinges officially approved in the sectoring of fires.
