5000 Sliding System

Technical Data

Accoustic insulation
Maximum glazing: 18 mm.

Maximum accoustic insulation Rw=34 dB
Transmittance
Uw from 2,3 (W/m²K),
Please consult typology, dimensions and glass
Opening possibilities
Sliding of  2, 3 & 4 sashes.
Apertura #13 Apertura #14 Apertura #15

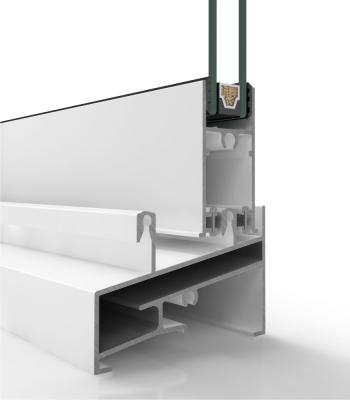

Sections / Profile thickness
SECTIONS

· Frame – 73 mm.
· Sash – 28 mm.

PROFILE THICKNESS
Window 1,5 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS

Width(L)= 1.600 mm.
Height(H)= 2.600 mm.

Maximum weight/sash 80 Kg.

Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 3

Water tightness (EN 12208:2000):
CLASS 8A

Wind resistance (EN 12210:2000):
CLASS C5

Reference test 1,20 x 1,20 m., 2 sashes
Finishes

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
