4200 Sliding system with thermal break
A versatile system with multiple perimetral frames and the possibility of head or perimetral sashes.
This presents a stylish option with curved or straight sashes. In its version of straight head sashes, the GALANDAGE 4200 Slider solution is included. It is designed to allow the possibility of an integral opening in the space to totally hide the sashes in the building's curtain wall chamber. This achieves a 100% opening surface.
The GALANDAGE option allows a single rail and dual rail frame allowing for balcony systems with 1, 2 & 4 hidden sashes.
It also allows for the incorporation of one sash in parallel hidden from the Tamiz solar protection system.
Technical Data
Accoustic insulation
Maximum glazing: 26 mm.
Maximum accoustic insulation Rw=39 dB
Transmittance
Uw from 1,5 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
· Sliding of 2, 3, 4 & 6 sashes
· Possibility of 3 rails
· Possibility of single or dual rail galandage in
1, 2 & 4 sashes.

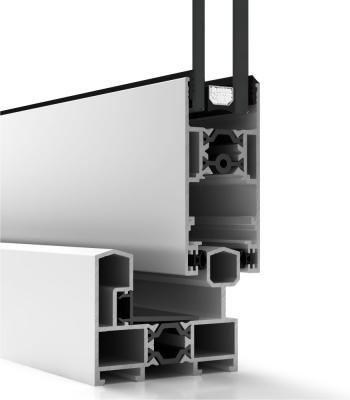

Sections / Profile thickness
SECTIONS
· Frame – 60, 65, 77 & 80 mm.
· 3 Rails– 106 & 126 mm.
· Sash – 33 & 37 mm.
PROFILE THICKNESS
Window 1,5 mm.
Polyamide strip length
from 14,6 to 20 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 2.200 mm.
Width(L)= 2.200 mm.
Height(H)= 2.600 mm.
Maximum weight/sash
100 Kg.(Perimetral sash)
200 Kg.(Head sash)
Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 3
Water tightness (EN 12208:2000):
CLASS 7A
Wind resistance (EN 12210:2000):
CLASS C5
Reference test 1,20x1,20, 2 sashes
Finishes
Possibility of dual colour
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
