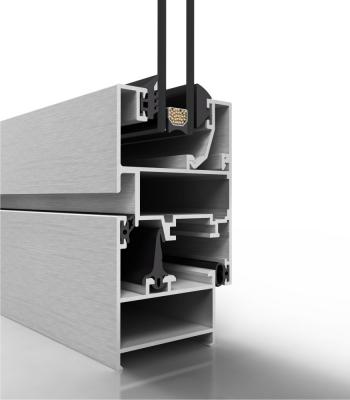

Cor-2300 System
Possibility of straight or curved beads

Technical Data

Accoustic insulation
Maximum glazing: 26 mm.

Maximum accoustic insulation Rw=39 dB
Transmittance
Uw from 2,0 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Open In:
Practicable, turn-tilt, folding,
parallel tilt, hinged.

Open Out:
Practicable, projecting-sliding,
pivoting on horizontal or
vertical axis
Apertura #1 Apertura #2 Apertura #3 Apertura #4 Apertura #5 Apertura #6 Apertura #7 Apertura #8 Apertura #18
Sections / Profile thickness
SECTIONS
· Frame – 40 mm.
· Sash – 48 mm.

PROFILE THICKNESS
Window 1,3 mm.
Door 1,4 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS

Width(L)= 1.500 mm.
Height(H)=2.400 mm.
*Single sash window, turn-tilt

Maximum weight/sash 120 Kg.

Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 4

Water tightness (EN 12208:2000):
CLASS 9A

Wind resistance (EN 12210:2000):
CLASS C5

Reference test
1,105 x 1,210 m., 2 sashes.
Finishes

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
