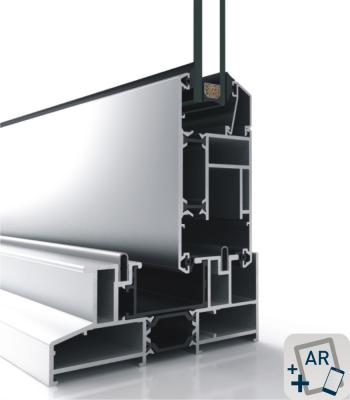

4500 Lift and Slide System with thermal break

A perimetral sliding door system with thermal breaking and a bevelled or curved style both in sashes and beads.

There are two versions:

- 4500 elevating sliding that bases its operation on a system in which the sashes are fitted with a mechanism that permits its own elevation whilst opening and descending when closing in such a way that the closed door rests over the top and bottom longitudinal water tightness gaskets allowing it to be fixed in whatever position.

Possibility of corner sash meeting at 90° without mullions.

In the fixed light and sash configuration, the rail in the fixed zone remains hidden.

- 4500 in line sliding (not elevating) allows the sliders to be made economically in large dimensions.

It presents configurations of sash fixed light, Fixed light sash fixed light, 2 sashes 2 fixed lights and 4 sashes.

The rail where the sashes slide along is made of stainless steel in order to avoid wear and tear.
