A new generation of façade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners and polygonals) as well as resolving large and heavy modulations.

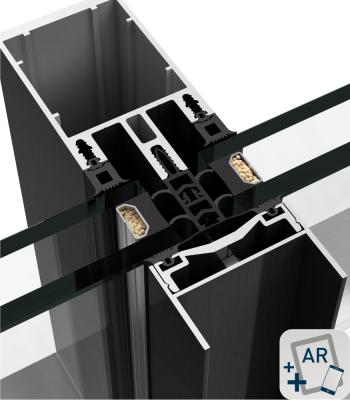

This TPV 52 façade is a mixed system that evolved from the combination of the TP 52 and the SG 52 systems.  It maintains the pairing of the pressure cover on the horizontal gaskets highlighting the line in this direction whilst the glazing fixing  is achieved by way of clips and the U profile on its vertical edge.

The maximum 30 mm thermal breaking together with its large glazing capacity of up to 44 mm and with large thicknesses and energy efficient glazing compositions give to this range of façades some excellent thermal and accoustic features.

CERTIFICATION CWCT British Standard
