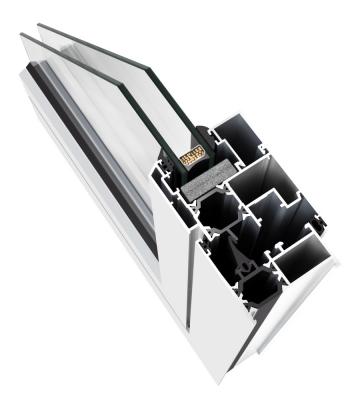

Cor-3500 C16 System with thermal break
A hinged 16 mm Groove system that optimizes labour and saves on the installation time of each window making it possible to fit the sash and frame opening kits in only 5 minutes.
Technical Data
Accoustic insulation
Maximum glazing: 34 mm.
Maximum accoustic insulation Rw=46 dB
Transmittance
Uw from 1,2 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Open In:
Practicable, turn-tilt, folding,
parallel tilt, hinged.
Open Out:
Practicable, projecting-sliding.
Sections / Profile thickness
SECTIONS
· Frame – 54 mm.
· Sash – 62 mm.
PROFILE THICKNESS
Window 1,5 mm.
Door 1,7 mm.
Polyamide strip length 24 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS
Width(L)= 1.600 mm.
Height(H)= 2.600 mm.
*Single sash window, turn-tilt
Maximum weight/sash 120 Kg.
Please consult regarding maximum weight
and dimensions for other opening types.
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 4
Water tightness (EN 12208:2000):
CLASS 9A
Wind resistance (EN 12210:2000):
CLASS C4
Reference test1,23 x 1,48 m., 2 sashes.
Finishes
Possibility of dual colour
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
