Skylight-Veranda

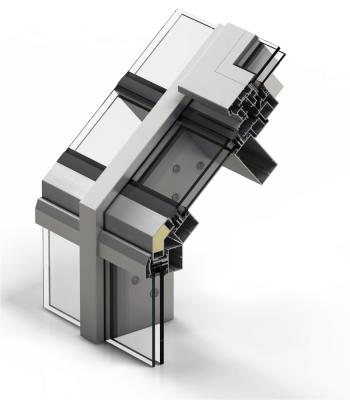

A system that uses the basic principle of drainage channels and ventilation for the façade systems that is increased with profiles that facilitate the use of different solutions, both in verandas as well as skylights.
Valley Rafter angles, hip and gable roof skylights, incoming angles etc. All types of solutions are possible resulting in gaining new spaces with great luminousity.
With verandas, the system is complemented by site meeting profiles, thermally broken gutters and profiles that are coupled with or without thermal break that allow for whatever type of opening.
An E.P.D.M. gasket system which is resistant to atmospheric agents and ensuring a total building weather tightness.

Technical Data

Glazing
Recommended glazing is an externally
tempered panel.

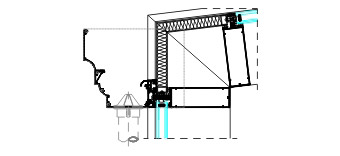

Sections
· Mullion – 145 mm.
· Transom - 50 mm.

Internal seen section - 65 mm
Opening possibilities
Open out:
Projecting – covered motorization
Finishes



Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized



Pending the recommended minimum
Pending the recommended minimum

Pt= 15% (8.5º)
