Cor-70 Hidden Sash System with Thermal Break

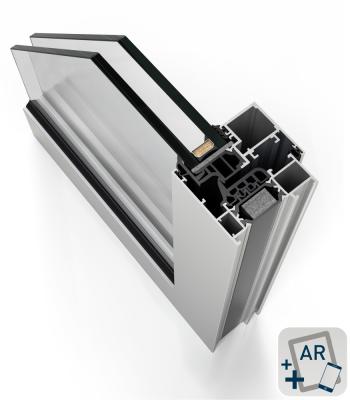

A new Euro-Groove concealed sash window design with slim profiles that are characterized by a seen surface of only 66 mm from the exterior that maximises the glazing surface and is able to reach 85% of the total window glazing. This characteristic provides an extraordinary increase in luminosity in the inside of the dwelling.

Its design allows for the hidden sash to be maintained from the outside in such a way that it is impossible to distinguish from the fixed zones that the opening has and therefore achieving perfect homogeneity in the façade’s style.

A 35 mm thermally broken area and the insertion of polyolefin sponge in the frame and sash allows it to reach values of up to 1,0 W/m²K of transmission in the space and therefore maximising its energy efficiency. These high thermal performances are completed with an increased level of sound insulation that this system achieves thanks to the possibility of installing glazing units of up to 40 mm in thickness.

The classifications achieved in the AEV tests go to prove that the system has excellent water tightness, air permeability and wind resistance values in order to obtain increased protection against the most unfavourable weather conditions.

Technical Data

Accoustic insulation
Maximum glazing: 40 mm.

Maximum accoustic insulation
Rw=46 dB
Transmittance
Uw from 1.0 (W/m²K)
Please consult typology,
dimensions and glass
Opening possibilities
Open In:
-practicable  1 or 2 sashes
-turn-tilt 1 or 2 sashes
-parallel tilt
Apertura #1 Apertura #2 Apertura #11 Apertura #17 Apertura #18

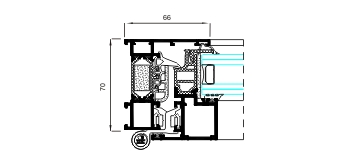

Sections / Profile thickness
SECTIONS
· Frame – 70 mm.
· Sash – 70 mm.

PROFILE THICKNESS
Window 1,9 mm.

Polyamide strip length 35 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS

Width(L)=
1.300 mm.
Height(H)= 2.400 mm.
*Single sash window, turn-tilt

Maximum weight/sash 120 Kg.

Please consult regarding maximum
weight and dimensions for other
opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 4

Water tightness (EN 12208:2000):
CLASS E1650

Wind resistance (EN 12210:2000):
CLASS C5

Reference test 1,23 x 1,48 m., 2 sashes.
Finishes

Possibility of dual colour

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
