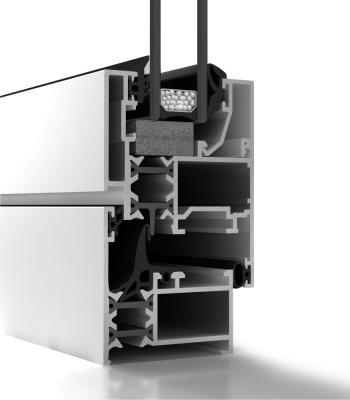

Cor-3000 System with thermal break
Possibility of straight or curved beads

Technical Data

Accoustic insulation

Maximum glazing: 31 mm.



Maximum accoustic insulation Rw=46 dB

Transmittance
Uw from 1,3 (W/m²K)
Please consult typology, dimensions and glass
Opening possibilities
Open In:
Practicable, turn-tilt, folding,
parallel tilt, hinged.

Open Out:
Practicable, projecting-sliding,
pivoting on horizontal or vertical
axis
Apertura #1 Apertura #2 Apertura #3 Apertura #4 Apertura #5 Apertura #6 Apertura #7 Apertura #8 Apertura #18
Sections / Profile thickness
SECTIONS
· Frame – 45 mm.
· Sash – 53 mm.

PROFILE THICKNESS
Window 1,5 mm.
Door 1,7 mm.

Polyamide strip length 14,6 mm.
Maximum dimensions / Maximum weight
MAXIMUM DIMENSIONS

Width(L)= 1.500 mm.
Height(H)= 2.400 mm.
*Single sash window, turn-tilt
Maximum weight/sash 120 Kg.

Please consult regarding maximum weight
and dimensions for other opening types
Categories achieved at test centre
Air permeability (EN 12207:2000):
CLASS 4

Water tightness (EN 12208:2000):
CLASS 9A

Wind resistance (EN 12210:2000):
CLASS C5

Reference test 1,18 x 1,18 m., 2 sashes.
Finishes

Possibility of dual colour

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
