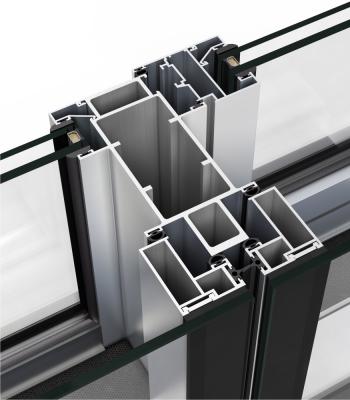

Ventilated Façade
A double light façade system, structural or semi-structural in its external style.
It incorporates a 140 mm chamber between the external and internal glazing in order to allow for the natural ventilation of the façade, reducing the thermal transmission towards the interior and achieving large energy efficiency for the building.
Access to the chamber is possible by way of practicable openings that facilitate cleaning and maintenance.
It incorporates a 140 mm chamber between the external and internal glazing in order to allow for the natural ventilation of the façade, reducing the thermal transmission towards the interior and achieving large energy efficiency for the building.
Access to the chamber is possible by way of practicable openings that facilitate cleaning and maintenance.
Technical Data
Glazing
Recommended glazing is an
externally tempered pane.
Maximum glazing:
- external: structural according
to external glass weight
- semi-structural: 28 mm.
- internal: 39 mm.
Transmittance
Ucw from 0,7 (W/m²K)
Please consult dimensions and glass
Opening possibilities
Hidden projecting
Open-in for access to the ventilation chamber.
Sections
· Mullion – 145 mm.
· Transom – 45 & 34 mm.
Dimensions & weight max.
MAXIMUM DIMENSIONS
Projecting opening
Projecting opening
Max. Width (L)= 2.200 mm.
Max. Height(H)= 2.200 mm.
MAXIMUM WEIGHT
Projecting opening 140 Kg.
Fixed light 400 Kg.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
