TP 52 Façade
A new generation of façade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects by using integral solutions.
Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to all of the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners, polygonals) as well as resolving large and heavy glazing modulations.
Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to all of the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners, polygonals) as well as resolving large and heavy glazing modulations.

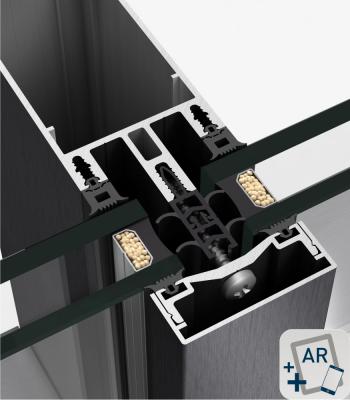

This TP 52 façade is a traditional system, also known as the Stick system. The fixing of the glazing to the supporting profiles is carried out by way of a continuous pressure profile screwed externally to a screw port incorporated in the mullions and transoms. The glazing remains fixed at its 4 sides using this profile that is available with seperating gaskets in order to impede contact between the glazing and the metal. The pressure profile and the screws are covered by a continuous external embellishing profile known as a cover.
The maximum 30 mm thermal breaking together with its large glazing capacity of up to 50 mm and with large thicknesses and energy efficient glazing compositions give to this new range of façades some excellent thermal and accoustic features.
Its seen external section coincides with the interior, being 52 mm.
CERTIFICATION CWCT British Standard
Its seen external section coincides with the interior, being 52 mm.
CERTIFICATION CWCT British Standard
Technical Data
Glazing
Maximum glazing: 50 mm.
Minimum glazing: 4 mm.
Minimum glazing: 4 mm.
Transmittance
Ucw from 0,6 (W/m²K)
Please consult dimensions and glass
Opening possibilities
Hidden projecting
Sections/Profile thickness/Covers

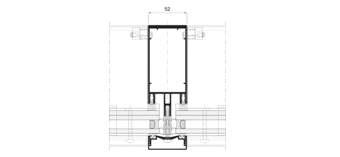

INTERNAL SEEN SECTION
· Mullion – 52 mm.
· Transom – 52 mm.
Thermal breaking from 6, 12 & 30 mm.
PROFILE THICKNESS
· Mullion – 2.1 & 3.0 mm.
· Transom – 2.1 mm.
COVERS
85 mm deep elliptical cover.
H shape cover, 34 mm deep.
Rectangular cover:14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep
Dimensions & weight max/min
MAXIMUM / LOW DIMENSIONS
Projecting opening
Max. Width (L)= 2.500 mm.
Max. Height(H)= 1.500 mm.
Min. Width (L)= 500 mm.
Min. Height (H)= 550 mm.
MAXIMUM WEIGHT
Projecting opening 180 Kg.
Categories achieved at test centre
Air permeability
(EN 12152:2000): CLASS AE
Water tightness
(EN 12154:2000): CLASS RE1500
Wind resistance
(EN 13116:2001): APT
(design loading 2000 Pa- security
loading 3000 Pa)
Test reference 3,00 x 3,50 m.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
