TPH 52 Façade
A new generation of façade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.
Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners and polygonals) as well as resolving large and heavy modulations.
Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners and polygonals) as well as resolving large and heavy modulations.

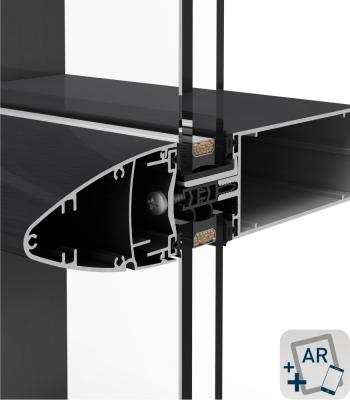

This TPH 52 façade is a mixed system that evolved from the combination of the TP 52 and the SG 52 systems. It maintains the pairing of the pressure cover on the horizontal gaskets highlighting the line in this direction whilst the glazing fixing is achieved by way of clips and the U profile on its vertical edge.
The maximum 30 mm thermal breaking together with its large glazing capacity of up to 44 mm and with large thicknesses and energy efficient glazing compositions give to this new range of façades some excellent thermal and accoustic features.
CERTIFICATION CWCT British Standard
CERTIFICATION CWCT British Standard
Technical Data
Glazing
Maximum glazing: 44 mm.
Minimum glazing: 6 mm.
Transmittance
Ucw from 0,6 (W/m²K)
Please consult dimensions and glass
Opening possibilities
Hidden projecting
Sections/Profile thickness/Covers

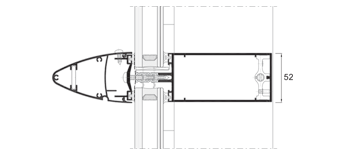

INTERNAL SEEN SECTION
· Mullion – 52 mm.
· Transom – 52 mm.
Thermal breaking from 6, 12, 30 mm.
PROFILE THICKNESS
· Mullion – 2.1 & 3.0 mm.
· Transom – 2.1 mm.
COVERS
85 mm deep elliptical cover.
H shape cover, 34 mm deep.
Rectangular cover: 14, 19 100 & 145 mm deep
Dimensions & weight max/min
MAXIMUM / LOW DIMENSIONS
Projecting opening
Max. Width (L)= 2.500 mm.
Max. Height(H)= 2.500 mm.
Min. Width (L)= 500 mm.
Min. Height (H)= 650 mm.
MAXIMUM WEIGHT
Projecting opening 180 Kg.
Categories achieved at test centre
Air permeability
(EN 12152:2000): CLASS AE
Water tightness
(EN 12154:2000): CLASS RE1500
Wind resistance
(EN 13116:2001): APT
(design loading 2000 Pa- security
loading 3000 Pa)
Test reference 3,00 x 3,50 m.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
