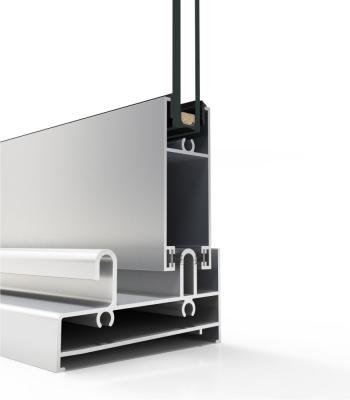

6500 Sliding System

Accoustic insulation

Maximum glazing: 30 mm.

Maximum accoustic insulation Rw=36 dB

Transmittance

Uw from 2,0 (W/m²K),

Please consult typology, dimensions and glass

Opening possibilities

Sliding of 2, 3, 4 & 6 sashes.

Possibility of triple channel.

Possibility of single channel.

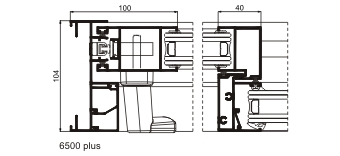

Sections / Profile thickness

SECTIONS

· Frame – 83 mm.
104 mm. (6500 plus)

· Sash – 32 mm.

41,6 (6500 plus)

PROFILE THICKNESS

Window 1,5 mm.
Door 1,5 mm.

Maximum dimensions / Maximum weight

MAXIMUM DIMENSIONS

Width(L)= 1.900 mm.

Height(H)= 2.600 mm.

Maximum weight/sash 150 Kg.

Please consult regarding maximum weight

and dimensions for other opening types

Categories achieved at test centre

Air permeability (EN 12207:2000):

CLASS 3

Water tightness (EN 12208:2000):

CLASS 7A

Wind resistance (EN 12210:2000):

CLASS C4

Reference test 1,48 x 1,30 m., 2 sashes

Finishes

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
