SG 52 Façade
A new generation of façade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

Its base profile range of 16 mm to 250 mm in mullions and 22.5 mm to 255.5 mm in transoms, and equally with the complementary accessories, are common to the new CORTIZO façades. The extensive profile range and their mechanical unions allows for all types of façades to be built (vertically, inclining, 90° corners, corners and polygonals) as well as resolving large and heavy modulations.

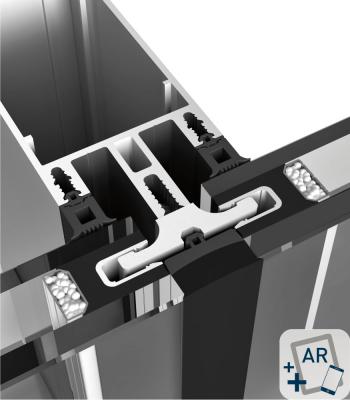

This SG 52 façade is a traditional system, also known as the Stick system.  The fixing of the glazing to the supporting profiles is carried out by using clips.  This system requires an insert that is fitted in to the glazing chamber (U profile).  The combination of the clip and the insert allows the glass to fastened on all four sides.
The maximum  30 mm thermal breaking together with its large glazing capacity of 44 mm and with large thicknesses and energy efficient glazing compositions give to this new range of façades some excellent thermal and accoustic features.

It has a “glass only” style on the exterior.

CERTIFICATION CWCT British Standard

Technical Data

Glazing
Maximum glazing: 44 mm.

Minimum glazing: 6 mm.
Transmittance

Ucw from 0,6 (W/m²K)

Please consult dimensions and glass

Opening possibilities

Hidden projecting

Apertura #16
Sections / Profile thickness

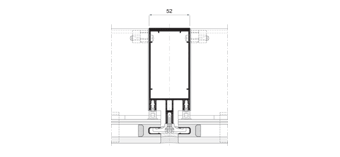

INTERNAL SEEN SECTION
· Mullion – 52 mm.
· Transom – 52 mm.

Thermal breaking   6, 12 & 30 mm.

PROFILE THICKNESS
· Mullion – 2.1 &  3.0 mm.
· Transom – 2.1 mm.
Dimensions & weight max/min
MAXIMUM / LOW DIMENSIONS
Projecting opening

Max. Width (L)= 2.500 mm.
Max. Height(H)= 2.500 mm.

Min. Width (L)= 500 mm.
Min. Height (H)=  650 mm.

MAXIMUM WEIGHT

Projecting opening 180 Kg.
Categories achieved at test centre
Air permeability
(EN 12152:2000): CLASS AE

Water tightness
(EN 12154:2000): CLASS RE1500

Wind resistance
(EN 13116:2001): APT
(design loading 2000 Pa- security
loading 3000 Pa)

Test reference 3,00 x 3,50 m.
Finishes

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
