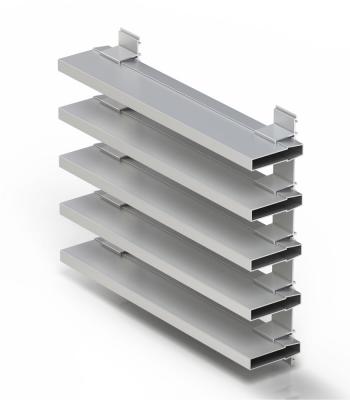

Lattices-Decorative louvres
Extruded aluminium louvres designed for external and internal building finishing and looking for light and visibility control but always at the same time allowing for ventilation from one side to the other in the installation.
Ideal for courtyards, wall finishing, habitually used spaces etc.
Technical Data
Louvre types
Lattices
Decorative lattices
Mini-lattices
Tubular louvres
Decorative louvres
Façade covering louvres:
-Punched
-Square ondulated
Maximum recommended length
Lattices 2.0 m.
Decorative lattices 1.5 m.
Mini-lattices 1.3 m.
Tubular louvres 2.0 m.
Decorative louvres 6.5 m.
Tubular louvres 2.0 m.
Decorative louvres 6.5 m.
* Depending on project specifications,
it is possible to reach a longer louvre
length (please consult)
it is possible to reach a longer louvre
length (please consult)
Visibility coefficient
Lattices 71% - 55º
Decorative lattices 56% - 50º
Mini-lattices 55% - 45º
Tubular louvres 76% - 90º
Decorative louvres 86% - 90º
Categories achieved at test centre
Wind loading resistance
(EN 13659:2004)
Lattice: CLASS 6 (max)
Mini-lattice: CLASS 5
Tubular louvres: CLASS 6 (max)
Tests carried out according to
UNE 1932:2001 norm
Test reference:
Lattice 2 m.
Mini-lattice 1.3 m.
Tubular louvres 1.3 m.
Finishes
Colour powder coating (RAL, mottled & rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized
