Cor-70 CC16 system with thermal break

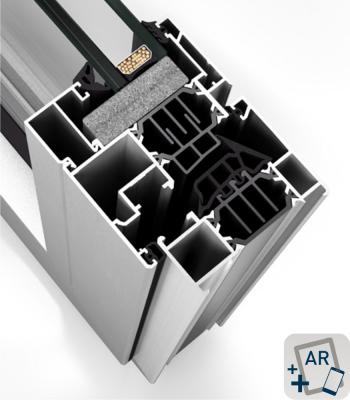

A hinged 70 mm window system with a potent insulation capacity and with a transmission value from only 0.8 W/m²K which has been achieved thanks to the perfect combination and design of aluminium profiles, 35 mm tubular polyamide rods, E.P.D.M  tubular water tightness gaskets and a system of polyolefine foam that is fitted around the glazing space perimeter.
Possiblity of straight and chamfered sashes and straight, chamfered or curved beads.
With its large glazing capacity of up to 58 mm it presents to this system some excellent accoustic and thermal features allowing the use of large glazing thicknesses and energy efficiencies.

Technical Data

Accoustic insulation

Maximum glazing: 58 mm.



Maximum accoustic insulation Rw=46 dB



Transmittance

Uw from 0,8 (W/m²K)

Please consult typology, dimensions
and glass

Opening possibilities

Open In:

Practicable, turn-tilt, folding, parallel tilt,

hinged.



Open Out:

Practicable, projecting-sliding.

Apertura #1 Apertura #2 Apertura #3 Apertura #4 Apertura #5 Apertura #16 Apertura #18
Sections / Profile thickness

SECTIONS

· Frame – 70 mm.

· Sash – 75 mm.



PROFILE THICKNESS

Window 1,5 mm.

Door 1,7 mm.



Polyamide strip length 35 mm.

Maximum dimensions / Maximum weight

MAXIMUM DIMENSIONS

Width(L)= 1.600 mm.

Height(H)= 2.800 mm.

*Single sash window, turn-tilt



Maximum weight/sash 150 Kg.



Please consult regarding maximum weight
and dimensions for other opening types

Categories achieved at test centre

Air permeability  (EN 12207:2000):

CLASS 4



Water tightness (EN 12208:2000):

CLASS E1500



Wind resistance (EN 12210:2000):

CLASS C5



Reference test 1,23x1,48 m., 2 sashes.

Finishes

Possibility of dual colour

Colour powder coating (RAL, mottled & rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized
